New Robots- Continued

[Craig_Anto3]

Anto 3 retro A3R to dust off an old chestnut

[Remote-Controlled Dave]

You need a 2 part cow clusterbot called Panto

[Craig_Anto3]

thats a genius idea

[Remote-Controlled Dave]

Well, I am a genius.

[peterwaller]

I have now built a second of the chassis boards for the second drive all day and without armour as it stands it weighs in at 89 gms.


You might recognise the pincers of a very tired antrax.
The wheels are the cheap 32p ones I mentioned in the Resource Website section but I need to sort the tyres.

[razerdave]

Looks good pete, what servo is that ?

[peterwaller]

It the TowerPro MG90S I just transplanted the whole pincer mechanism from Antax.

[peterwaller]

Now with front supports and wrap round plastic armour it comes in at 98 gms.
As a drive all day it not going to be up against spinners.

Just about runs inverted.

[Andrew_Hibberd]

looking good pete

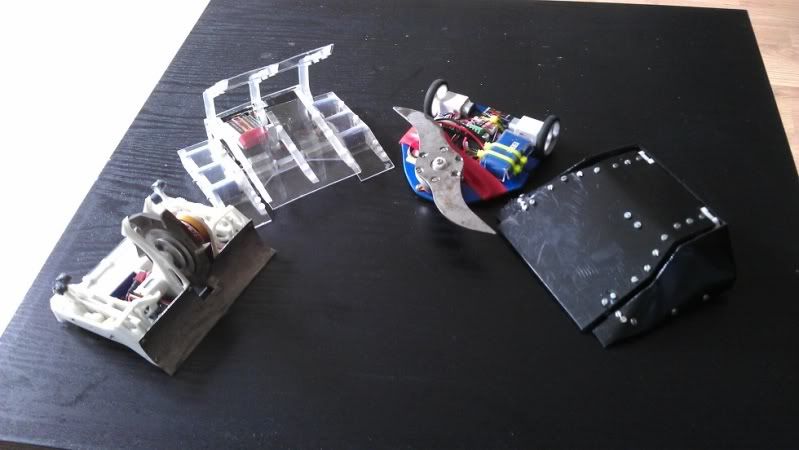

I thought I would post my team up before the AWS, obviously still things to do this evening but more ready than I normally am.


From left to right

Kwijebo 224g
106g disc 3/3d motor with a cheap 10A controller
10:1 HP drive
old sozbots control board
fyfe-jamieson 'no bounce' walking mech
2 cell lipo

Anticide (Nom cubed) 151g
6WD 30:1 HP drive geared up to about 20:1
2 82MG servos for grab and lift weapon
2 cell lipo
4mm bolted chassis

Anticipation 146g
150mm blade ~50g not very well balanced
30:1 HP drive using sozboard board

A little bit of fail (ICant was entered...) 137g, will add some extra weight
50:1 HP drive
82MG lifter
3 cell lipo

See you all tomorrow morning.

[Craig_Anto3]

Scrap Mamba, made of rubbish, took about 15 minutes to make, utter rubbish but its something new
